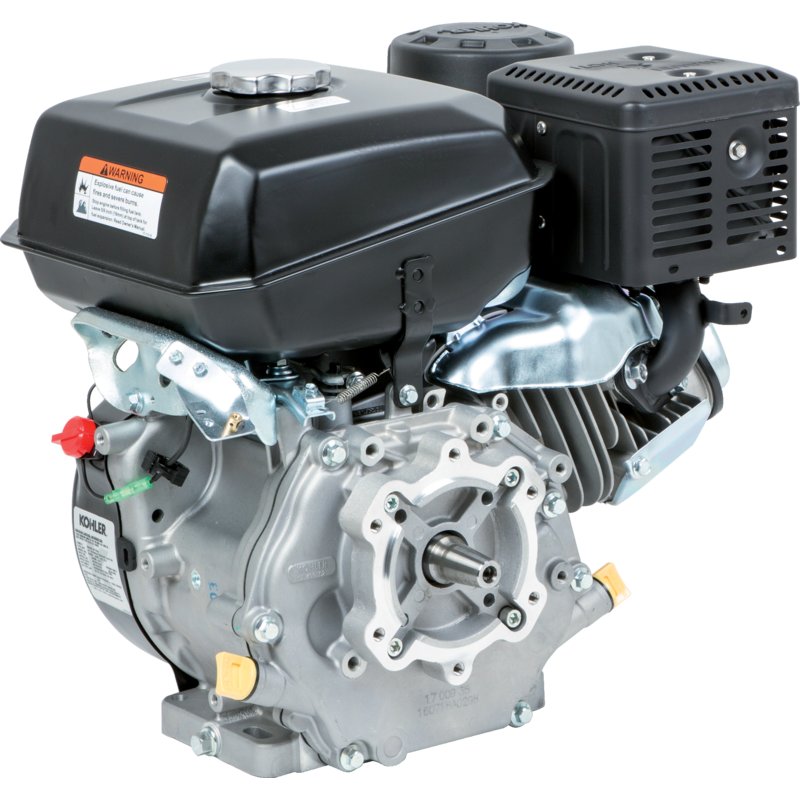

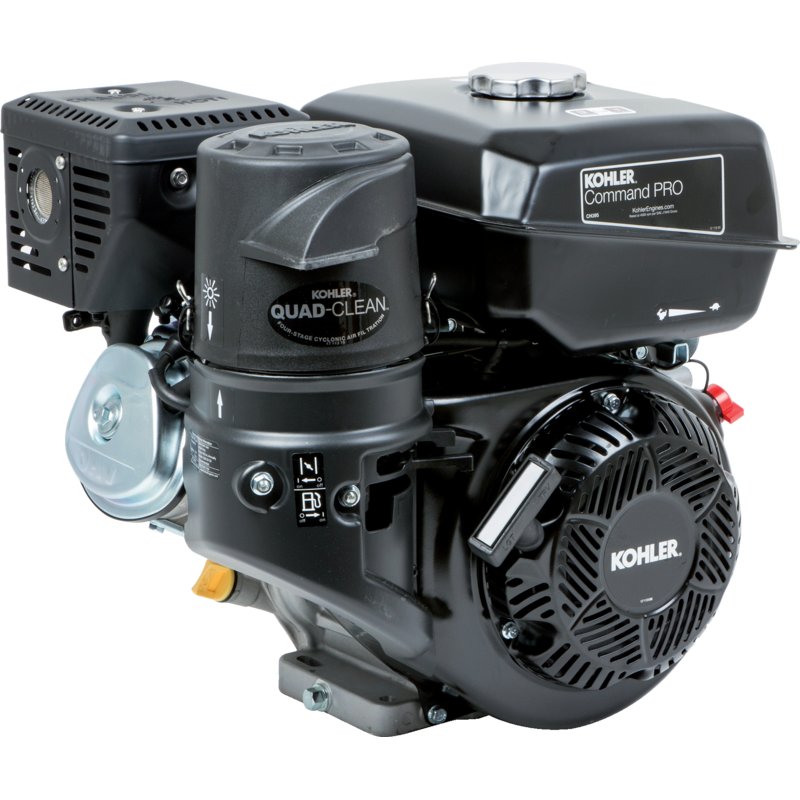

Kohler petrol engine 9.5 hp and displacement 277 cc, without alternator Command Pro CH395

4-stroke engine for motor mowers – Technical details

• Max. gradient: 50% (equivalent to 26.57°)
• Displacement: 277 cc
• Power: 9.5 hp
• Starter: Manual starter (without alternator)
• Crankshaft: Conical, diameter approx. 18 mm to 24 mm
• KW length: 33 mm (from European flange)

Flange details:

• European flange with 6 holes (bolt circle 135 mm; hole to hole distance: 69 mm)
• Without European flange: 4-hole flange pattern with bolt circle 127 mm
• Crankshaft with cone and internal thread (M8 x 1.25)

Compatibility:

• Alternative to Robin EX27, Rotax 232 and MAG engines 1029 and 1026
• Suitable for:
  • Reform motor mower 715
  • Vogel & Noot Motor Mower Plus (incl. gearbox from Vogel & Noot)
  • Reform 206 with ACME 349 engine (no adapter required)
• Reform RM 200: Adapter required (Reform number: 105 102 102)
• Aebi: Suitable for Aebi AM9, not compatible with Aebi AM8 with external thread pin

A notice:

• Not compatible with crankshafts that have a conical external thread (M14 x 1.5 mm)!
• Retrofit option: Oil sensor (item no. 871709905S), on-off switch must also be replaced.
